Home Multi Channel Reader
608
608

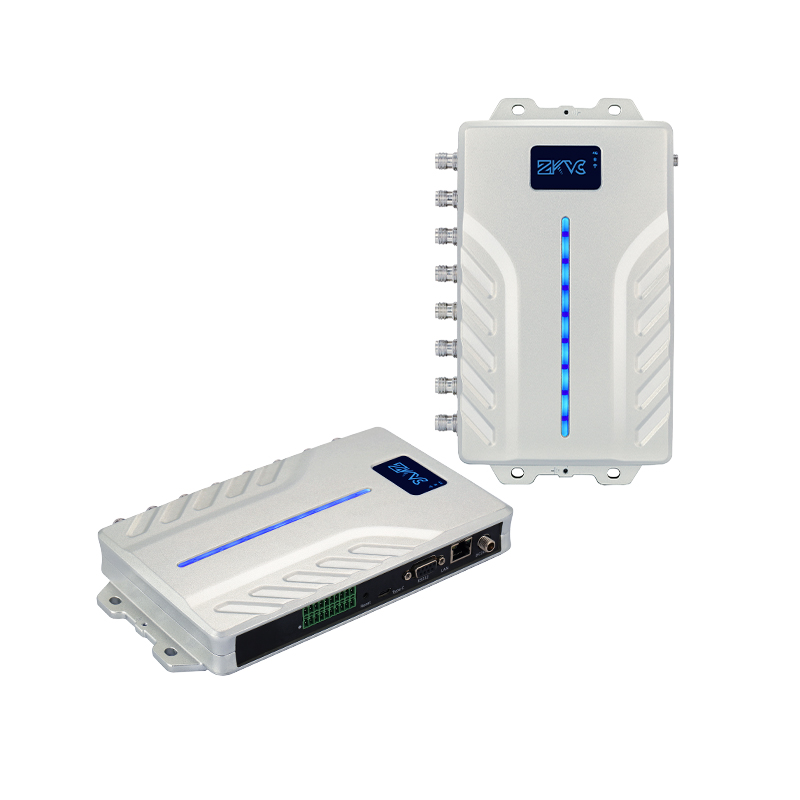

ZKV608

1、UHF remote read/write (based on Impinj E710/R2000 chip)

2、Built-in Linux, easy to customize application development

3、8 reverse polarity TNC ports

4、Power 0 to 35dBm adjustable

5、Supports multiple frequency bands such as CHN, FCC, ETSI, etc

6、Supports various communication interfaces, such as RJ45, RS232, RS-485, Type-C, and Wiegand

7、expandable WiFi wireless communication function

8、Support breakpoint resume and whitelist function, capable of caching 100000 records

9、Remote configuration using the Web is supported

10、Optional POE IEEE802.3bt power supply (supports maximum power operation)

11、Independent opening mold, all aluminum die casting, efficient heat dissipation

Share：
Product Detail
  • System parameter
    Operating systemLinux 2.6
    processorARM 9，400MHz
    Internal memoryFlash 128MB，SDRAM 32MB
    Version upgradeDemo software/remote upgrade
    API support.Net/.Net core/Java/C++/Android Java/ communication protocol
    Characteristic functionBreakpoint resume、whitelist
    Custom output PLC/Modbus compatible data format
    Support RF/ EM temperature sensor chip
    WiFi, Bluetooth transmission, POE power supply
  • Physical parameter
    Size241mm×132mm×36mm
    Weight1.0Kg
    ShellDie cast aluminum
    Status indicationPower supply, antenna status, antenna port, WiFi
    Power waste25W (output power 35dBm)
    Class of protectionIP53
  • RFID
    RFIDBased on Impinj E710 chip
    Based on Impinj R2000 chip (optional)
    AgreementISO/IEC 18000-6B，6C/EPC C1Gen2、C2Gen2，GB/T 29768-2013(optional), GJB 7377.1(optional)
    Recognition distance
    		0m～40m(depending on the label or the environment)
    Operating frequencyCHN：920MHz～925MHz，840MHz～845MHz
    FCC：902MHz～928MHz
    ETSI：865MHz～868MHz
    Other multinational frequency standards (customizable)
    RF output power0dBm～35dBm（±1dBm）adjustable
    Recognition speed>400 times/second (recognition count ≠ recognition quantity, multiple tags can be read at once)
    Channel bandwidth
    		＜200KHz
    Performance
    		performanceSupport multi label/dense read-write
    Working modeFixed frequency/frequency hopping optional
  • Interface
    InterfaceRJ45，RS232，RS485，USB Type-C，Wiegand
    CustomizableExternal WiFi/internal POE IEEE802.3bt power supply
    I /O Interface4 optocoupler input (DC 0 ~ 24V), 4 relay output (DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A)
    Equipment powerDC 24V/2.5A（DC 9V～30V，60W）
    RF interface8 reverse polarity TNC ports
  • Environmental parameters
    Storage Temp
    		-20℃～+65℃
    Operating Temp
    		-20℃～+60℃
    Humidity5%RH～95%RH（non-condensing）
