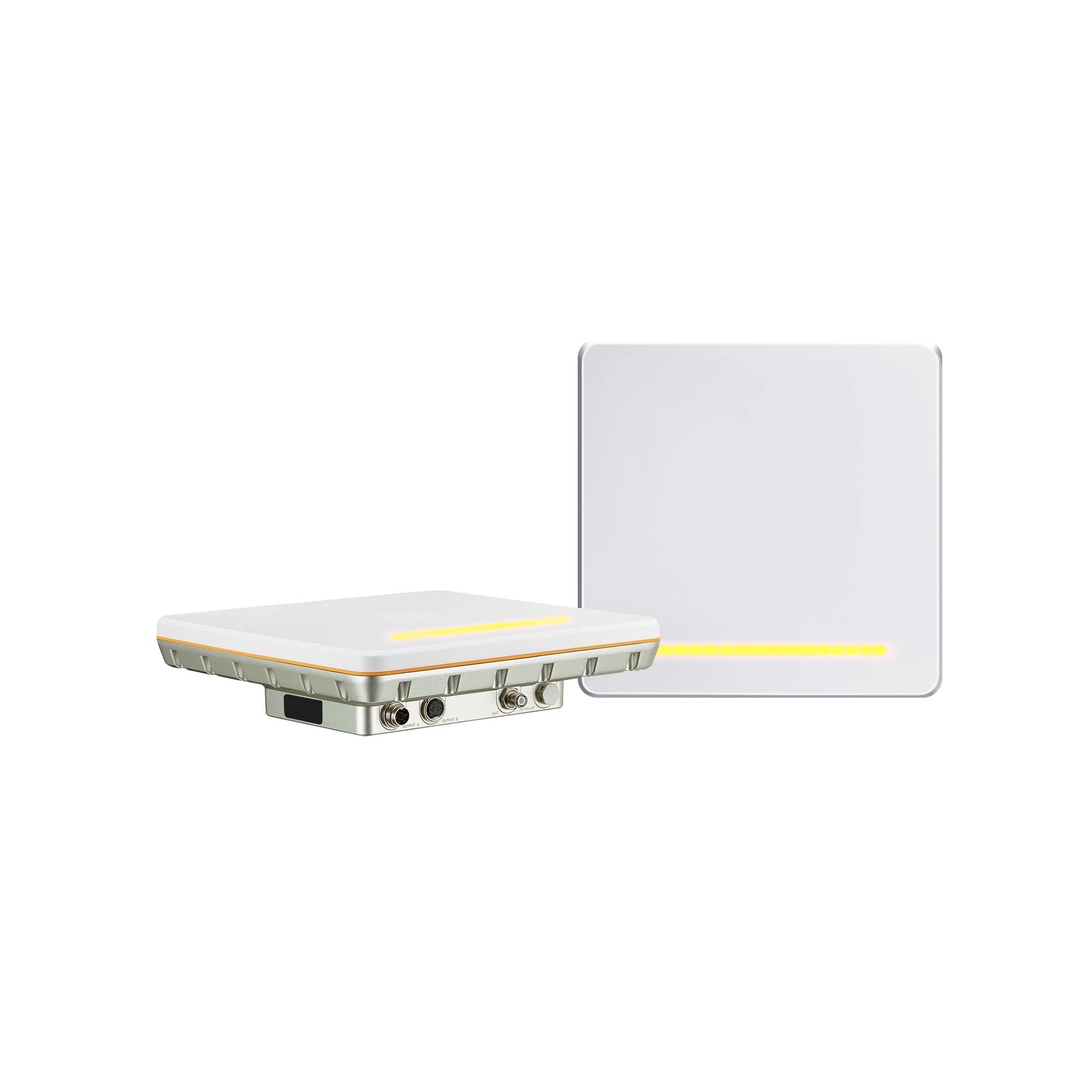

Home Integrated RFID Reader ZKV39A
39A
39A
ZKV39A

1、UHF remote read/write (based on Impinj E710/R2000 chip)

2、Built-in Linux, easy to customize application development

3、Power 0 to 35dBm adjustable

4、Supports multiple frequency bands such as CHN, FCC, ETSI, etc

5、Supports multiple communication interfaces such as RJ45, RS232, RS-485, Wiegand

6、Built in 9dBi antenna and can External 1 antenna

7、Support breakpoint resume and whitelist function, capable of caching 100000 records

8、Remote configuration using the Web is supported

9、Optional POE IEEE802.3bt power supply (supports maximum power operation)

10、IP67 protection, surge level three, waterproof, dustproof and lightning protection, suitable for all-weather outdoor work

11、Independent opening mold, all aluminum die casting, efficient heat dissipation

Share：
Product Detail
  • System parameter
    Operating systemLinux 2.6
    ProcessorARM 9，400MHz
    Internal memoryFlash 128MB，SDRAM 32MB
    Version upgradeDemo software/remote upgrade
    API support.Net/.Net core/Java/C++/Android Java/protocol
    Characteristic functionAutomatic card reading/whitelist
    breakpoint resume/data filtering
    Custom output PLC/Modbus compatible data format
    Support RF/EM temperature sensor chips
    Web remote configuration
  • Physical parameter
    Size276mm×276mm×70mm
    WeightAbout 1.76kg (net weight)
    ShellDie cast aluminum
    Class of protectionIP67, Surge Level III, Waterproof, Dustproof, Lightning Protection
    Status indicationPower supply, working status, antenna port indicator light, WiFi
    Power waste30W (output power 35dBm)
  • RFID
    RFIDBased on Impinj E710 chip
    Based on Impinj R2000 chip (optional)
    AgreementISO/IEC 18000-6B，6C/EPC C1Gen2、C2Gen2，GB/T 29768-2013(optional), GJB 7377.1(optional)
    Operating frequencyCHN：920MHz～925MHz，840MHz～845MHz
    FCC：902MHz～928MHz
    ETSI：865MHz～868MHz
    Other multinational frequency standards (customizable)
    RF output power0dBm～35dBm（±1dBm）adjustable
    Recognition speed>400 times/second (recognition count ≠ recognition quantity, multiple tags can be read at once)
    Recognition distance0m～40m(depending on the label or the environment)
    Channel bandwidth＜200KHz
    PerformanceSupport multi label/dense read-write
    Working modeFixed frequency/frequency hopping optional
  • Interface
    InterfaceRJ45，RS232，RS485，Wiegand
    CustomizableExternal WiFi, built-in POE IEEE802.3bt power supply
    I/O interface2 optocoupler input (DC 0 ~ 24V), 2 relay output (DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A)
    Equipment powerDC 24V/2.5A（DC 9V～30V，60W）
    External antennaReverse polarity TNC port
  • Environmental parameters
    Storage Temp-40℃～+85℃
    Operating Temp-25℃～+70℃
    Humidity5%RH～95%RH(non-condensing)
