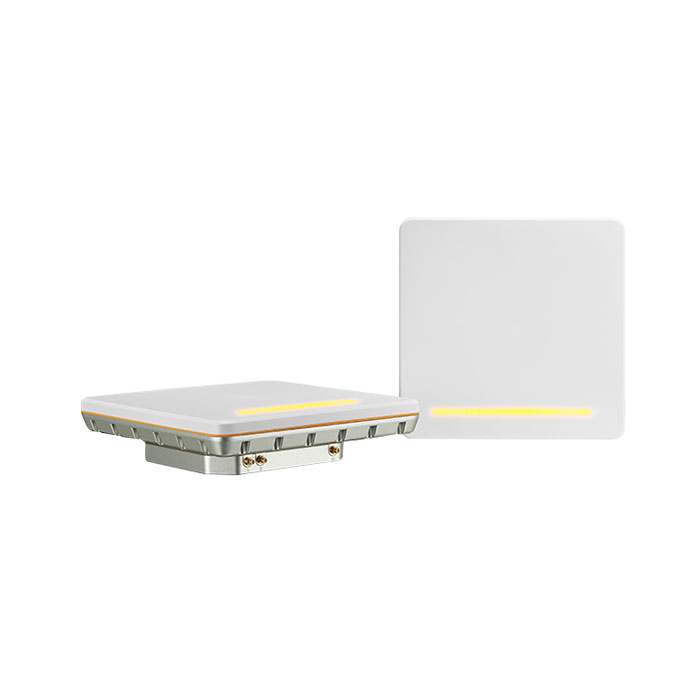

ZKV39X

1、UHF remote read/write (based on Impinj E710/R2000 chip)

2、Open development environment for Android 9.0 operating system

3、Power 0 to 35dBm adjustable

4、Supports multiple frequency bands such as CHN, FCC, ETSI, etc

5、Supports multiple communication interfaces such as RJ45, RS485, Wiegand, USB, Bluetooth, WiFi, 4G, etc

6、Support MQTT/HTTP POST transmission/Support data transmission specified database/Support NTP

7、Built in 9dBi antenna and can External 1 antenna

8、Optional POE IEEE802.3bt power supply (supports maximum power operation)

9、Remote configuration using the Web is supported

10、IP67 protection, surge level three, waterproof, dustproof and lightning protection, suitable for all-weather outdoor work

11、Independent opening mold, all aluminum die casting, efficient heat dissipation

Share：
Product Detail
  • System parameter
    Operating systemAndroid 9.0
    ProcessorMT6765，Octa-Core 2.3Ghz
    Internal memoryROM 64GB,RAM 4GB
    Version upgradeDemo software/remote upgrade
    API support.Net/.Net core/Java/C++/Android Java/protocol
    Characteristic functionAutomatic card read/whitelist/Breakpoint resume/RF and EM temperature label collection
    breakpoint resume/data filtering
    Custom output PLC/Modbus compatible data format
    Support MQTT/HTTP POST transmission/Support data transmission specified database/Support NTP
  • Physical parameter
    Size276mm×276mm×70mm
    WeightAbout 1.76kg (net weight)
    ShellDie cast aluminum
    Class of protectionIP67, Surge Level III, Waterproof, Dustproof, Lightning Protection
    Status indicationPower supply, working status, antenna port, WiFi, 4G, Bluetooth
    Power waste25W (output power 35dBm)
  • RFID
    RFIDBased on Impinj E710 chip
    Based on Impinj R2000 chip (optional)
    AgreementISO/IEC 18000-6B，6C/EPC C1Gen2、C2Gen2，GB/T 29768-2013(optional), GJB 7377.1(optional)
    Operating frequencyCHN：920MHz～925MHz，840MHz～845MHz
    FCC：902MHz～928MHz
    ETSI：865MHz～868MHz
    Other multinational frequency standards (customizable)
    RF output power0dBm～35dBm（±1dBm）adjustable
    Recognition speed>400 times/second (recognition count ≠ recognition quantity, multiple tags can be read at once)
    Recognition distance0m～40m(depending on the label or the environment)
    Channel bandwidth＜200KHz
    PerformanceSupport multi label/dense read-write
    Working modeFixed frequency/frequency hopping optional
  • Interface
    CommunicationRJ45，RS232，RS485，Wiegand
    WiFi：802.11 a/b/g/n/ac
    4G：LTE-FDD（CAT-7）/LTE-TDD（CAT-7）/WCDMA/TD-SCDMA/EVDO/CDMA/GSM
    Bluetooth：BT v2.1+EDR，3.0+HS，v4.1+HS
    I/O interface2 optocoupler input (DC 0 ~ 24V), 2 relay output (DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A)
    Equipment powerDC 24V/2.5A (DC 9V～30V，60W) or POE(IEEE 802.3 af/at/bt)
    DisplayHDMI, default support for 720P output/maximum 1080P
  • Environmental parameters
    Storage Temp-40℃～+85℃
    Operating Temp-25℃～+70℃
    Humidity5%RH～95%RH(non-condensing)
