Home Integrated RFID Reader ZKV3A
3A
3A-2
3A

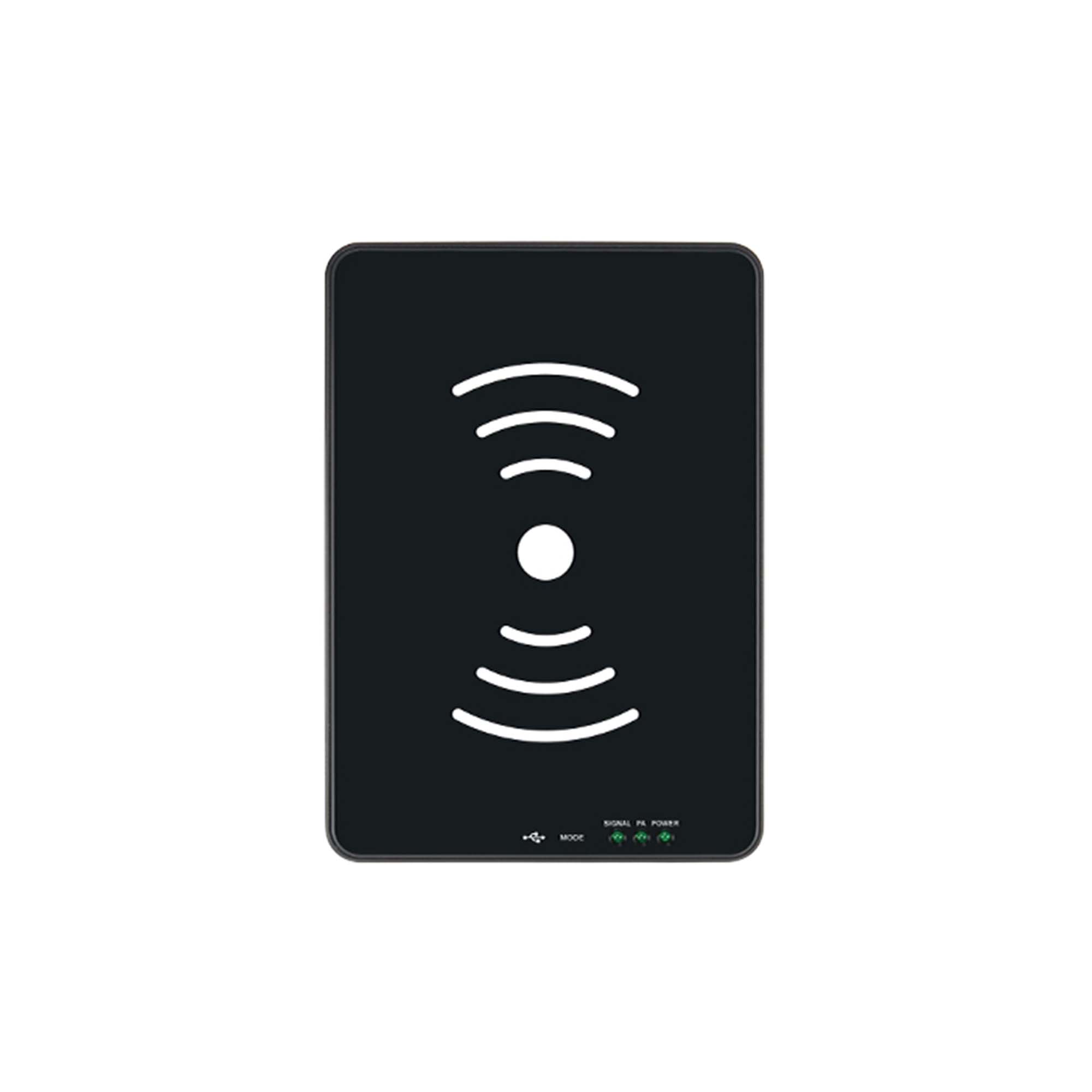

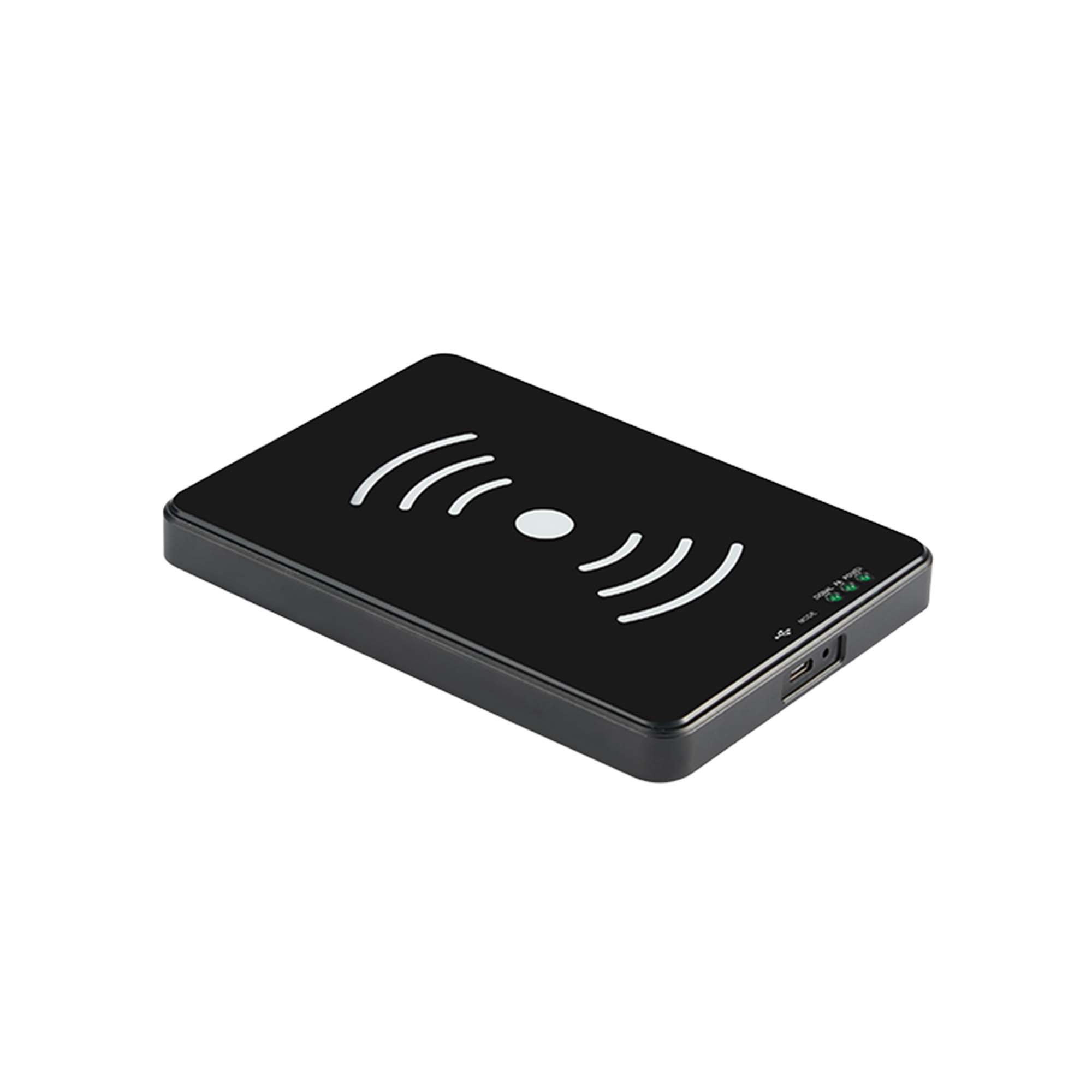

ZKV3A

1、USB driver free, USB power supply and communication integrated

2、Provide card writing software that supports fast card writing and ASCII code reading and writing

3、Support USB simulation keyboard mode, read data and output at the cursor position

4、Supports multi label reading and can be used as a desktop all-in-one machine

Share：
Product Detail
  • Physical parameter
    Size170 mm×120mm×17mm
    Status indication
    		Status indicationCard reading indicator light, RF signal indicator light, power indicator light
    Weight0.25Kg
  • Interface
    InterfaceUSB 2.0 Type C
    Power SupplyUSB interface Power supply
    Working power consumption1.3W@10dBm,1.8W@20dBm,3.5W@30dBm(It is recommended to use a USB 3.0 or higher interface if it is greater than 20dBm)
  • RFID
    AgreementISO/IEC18000-6C
    Operating frequencyCHN:920MHz～925MHz
    FCC:902MHz～928MHz
    ETSI:865MHz～868MHz
    RF output power0～30dBm±1dBm adjustable
    Recognition distance0cm~100cm (power can be set according to requirements)
    Write distance0cm～30cm
    Label writing speed128 bytes/second (not less than)
    Frequency stability
    		≤±10ppm
    Working mode
    		Demo mode/simulation keyboard cursor printing mode
    Functional Features
    		Equipped with protocol mode and simulated keyboard cursor printing mode, USB driver free, USB powered communication integrated
    API support
    		.Net/.Net core/Java/C++/Android Java/ communication protocol
    Software
    		Provide card writing software (supporting ASCII code writing)
  • Environmental parameters
    Storage Temp-40℃～+85℃
    Operating Temp-20℃～+70℃
    Humidity5%RH～95%RH(non-condensing)
